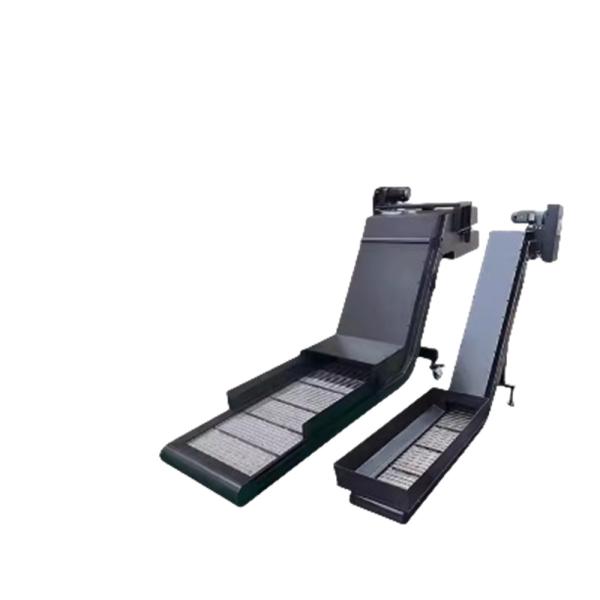

Industrial Chip Conveyor For CNC Machine / IS09001 Metal Chip Conveyor

Chip Removal Machines: Operational Dynamics in Industrial Machining

Introduction: In the bustling environment of industrial machining, the controlled management of metal chips and debris is paramount. Chip removal machines are specialized equipment designed to streamline this process, ensuring that metalworking operations remain efficient, safe, and clean.

Operation of Chip Removal Machines: The operation of chip removal machines involves several key steps that contribute to their effectiveness:

1. Collection:

   • The initial phase involves the gathering of metal chips and swarf produced by machining processes. This is typically achieved through strategically positioned collection points near the cutting tools or machines.

2. Transportation:

   • Once collected, the chips are transported away from the machining area. This is done through various methods depending on the type of chip removal machine, such as belts, chains, screws, or air systems.

3. Conveying:

   • The chips are then conveyed along a designated path, which can be linear or follow a specific layout designed to accommodate the workshop's architecture and workflow.

4. Separation and Filtration:

   • In some machines, especially those used in wet machining, there is a stage where coolant and other fluids are separated from the chips. Filtration systems may also be employed to remove fine particles before the chips are collected.

5. Drying and Cooling:

   • If the chips are wet or hot from the machining process, they may pass through a drying or cooling stage to ensure they are safe for further handling or disposal.

6. Storage:

   • The final stage involves the storage of collected chips, either for recycling, disposal, or reuse in other processes.

Types of Chip Removal Machines and Their Operations:

1. Belt Conveyors:

   • Operate by moving a continuous loop of belts that carry chips away from the machining area. The belts can be flat or troughed to contain the debris.

2. Chain Conveyors:

   • Use a chain mechanism, often with a series of plates or buckets, to transport heavier loads of chips and larger debris.

3. Screw Conveyors:

   • Function by rotating a helical screw within a tube, pushing the chips through the tube to a collection point.

4. Vibratory Conveyors:

   • Utilize vibrations to move chips along a surface, often used for smaller or lighter debris that requires gentle handling.

5. Hydraulic Conveyors:

   • Flush chips away with a high-pressure stream of water, suitable for wet machining processes where coolant is used extensively.

6. Magnetic Conveyors:

   • Employ magnetic fields to attract and transport ferromagnetic materials, separating them from non-magnetic debris.

7. Air Conveyors:

   • Use airflow to transport very light or fine chips and dust, often as part of a dust collection system.

Conclusion: Chip removal machines play a critical role in the metalworking industry, ensuring that the process of managing metal chips and debris is as efficient and safe as possible. Their operation, from collection to storage, is designed to meet the specific needs of various machining environments. As industrial technology continues to evolve, the operation of chip removal machines will likely become more automated and integrated into smart factory systems, further enhancing their capabilities and efficiency.

stable metal chip conveyor

customized metal chip conveyor

stable chip conveyor for cnc machine

Industrial Chip Conveyor For CNC Machine / IS09001 Metal Chip Conveyor Images
